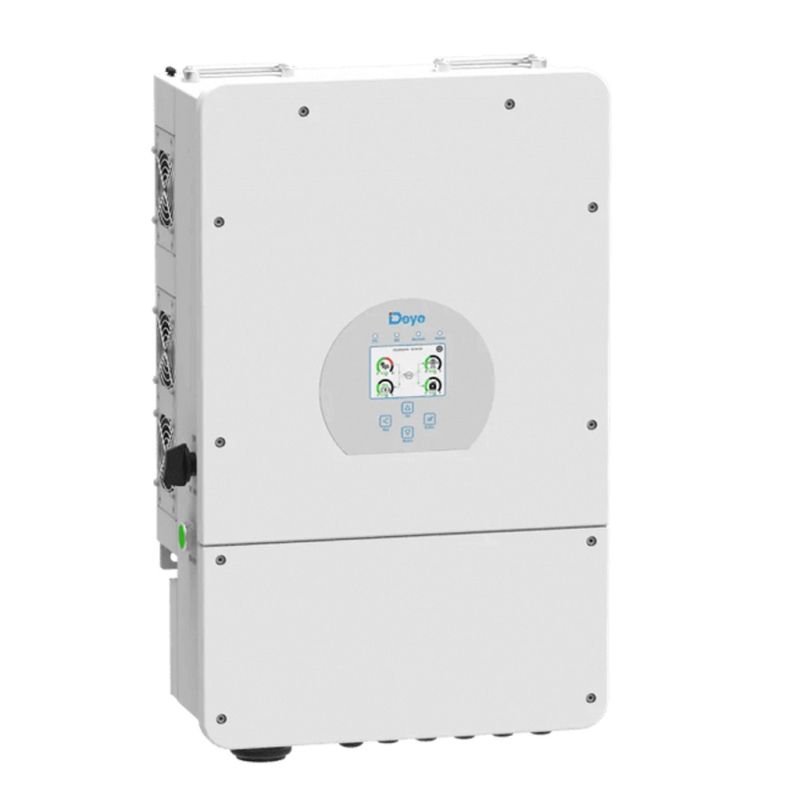

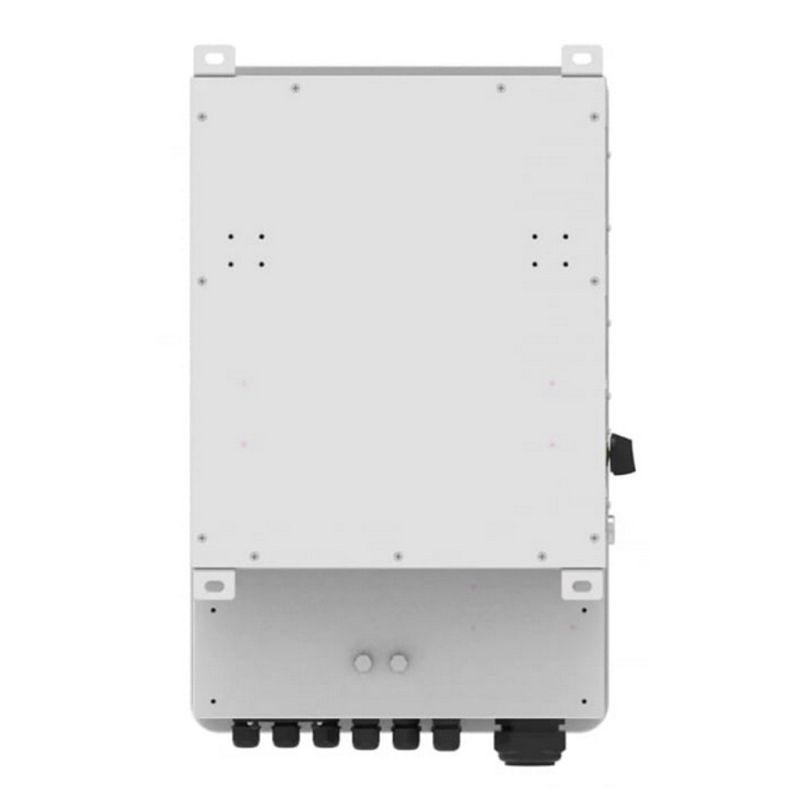

DEYE SUN-16K-SG01LP1-EU

The DEYE SUN-16K-SG01LP1-EU is a high-performance hybrid inverter ideal for residential and commercial photovoltaic systems. With advanced battery management, three MPPT trackers, and support for up to 2 battery inputs, it offers maximum efficiency and reliability for off-grid and grid-connected applications.

Specifications:

Battery

• Type: Lead-acid or Lithium-ion
• Voltage range: 40-60V
• Max charging current: 290A
• Max discharging current: 290A
• Charging strategy: Self-adaptation to BMS
• Number of battery inputs: 2

PV Input Data

• Max PV input power: 32,000W
• Max DC input power: 25,600W
• Max DC input voltage: 500V
• Start-up voltage: 125V
• MPPT voltage range: 150-425V
• Rated DC input voltage: 370V
• MPPT trackers: 3

AC Input/Output

• Rated AC output power: 16,000W
• Max AC apparent power: 17,600VA
• Peak power: 2 times the rated power for 10s
• Rated input/output voltage: 220/230V
• Grid frequency range: 50/60Hz
• Grid connection: L+N+PE

Efficiency & Protection

• Max efficiency: 97.6%
• Euro efficiency: 96.5%
• MPPT efficiency: >99%
• Protection level: IP65

General

• Operating temperature: -40°C to +60°C
• Cooling type: Intelligent air cooling
• Weight: 52kg
• Warranty: 5 years/10 years (depending on final installation site)
