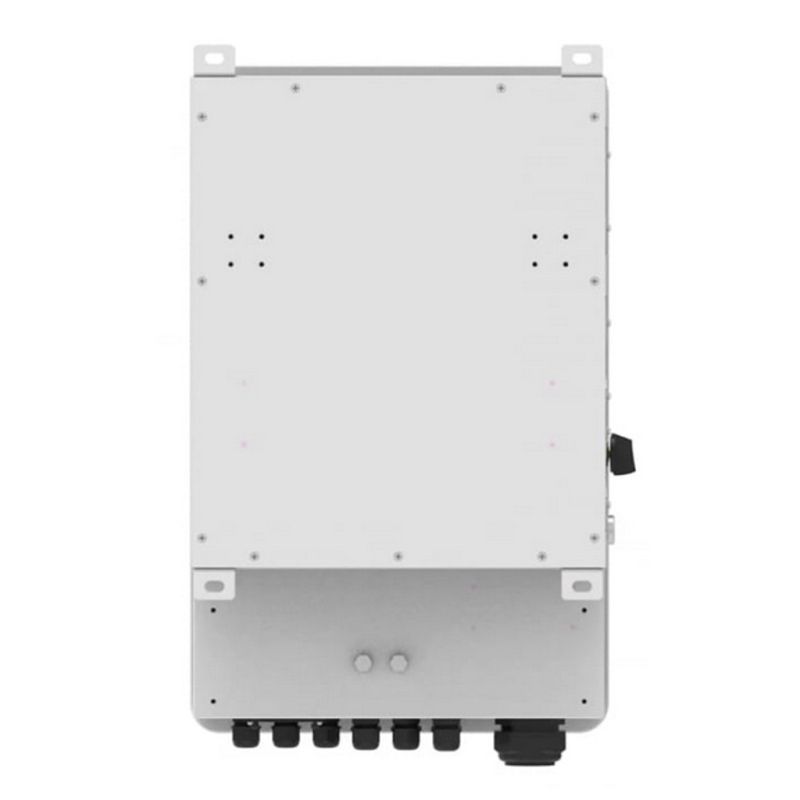

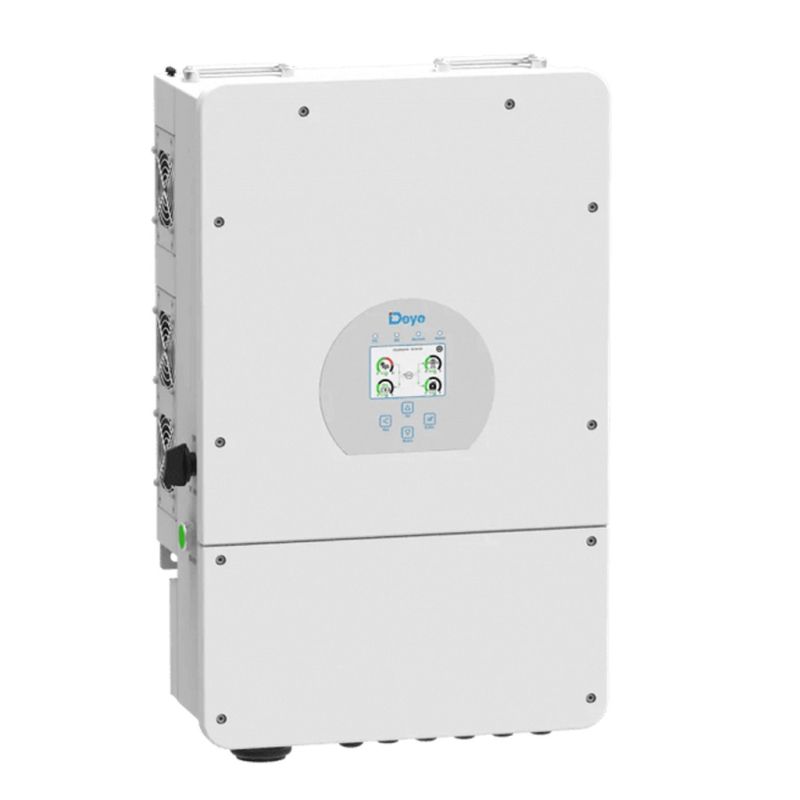

Deye Single Phase Hybrid Inverter On-Grid/Off-Grid 10kW

Colorful touch LCD, IP65 protection degree

AC couple to retrofit existing solar system

Max. charging/discharging current of 250A

6 time periods for battery charging/discharging

Support storing energy from diesel generator

Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Model: SUN-10K-SG02LP1-EU-AM3

Battery Input Data

• Battery Type: Lead-acid or Lithium-ion
• Battery Voltage Range (V): 40-60
• Max. Charging Current (A): 250
• Max. Discharging Current (A): 250
• Charging Strategy for Li-ion Battery: Self-adaption to BMS
• Number of Battery Input: 1

PV String Input Data

• Max DC Input Power (W): 15000
• Max DC Input Voltage (V): 500
• Start-up Voltage (V): 125
• MPPT Voltage Range (V): 150-425
• Rated DC Input Voltage (V): 370
• Max. Operating PV Input Current (A): 26+26+26
• Max. Input Short-Circuit Current (A): 44+44+44
• No. of MPP Trackers/No. of String Per MPP Tracker: 3/2+2+2

AC Input/Output Data

• Rated AC Input/Output Active Power (W): 10000
• Max AC Input/Output Apparent Power (VA): 11000
• Peak Power (off-grid) (W): 2 times of rated power, 10s
• Rated AC Input/Output Current (A): 45.5/43.5
• Max AC Input/Output Current (A): 45.5/43.5
• Max Continuous AC Passthrough (grid to load) (A): 60
• Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
• Rated Input/Output Voltage/Range (V): 220/230 0.85Un-1.1Un
• Rated Input/Output Grid Frequency/Range (Hz): 50/45-55, 60/55-65
• Grid Connection Form: L+N+PE
• Total Current Harmonic Distortion THDi: <3% (of nominal power)
• DC Injection Current: <0.5%ln

Efficiency

• Max Efficiency: 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: ＞99%

Equipment Protection

• Integrated
• DC Polarity Reverse Connection Protection
• AC Output Overcurrent Protection
• AC Output Overvoltage Protection
• AC Output Short Circuit Protection
• Thermal Protection
• DC Terminal Insulation Impedance Monitoring
• DC Component Monitoring
• Ground Fault Current Monitoring
• Power Network Monitoring
• Island Protection Monitoring
• Earth Fault Detection
• DC Input Switch
• Overvoltage Load Drop Protection
• Residual Current (RCD) Detection
• Surge Protection Level: TYPE II (DC), TYPE II (AC)

Interface

• Communication Interface: RS485/RS232/CAN
• Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN (optional)

General Data

• Operating Temperature Range: -40 to +60℃, >45℃ Derating
• Permissible Ambient Humidity: 0~100%
• Permissible Altitude: 2000m
• Ingress Protection (IP) Rating: IP 65
• Inverter Topology: Non-Isolated
• Over Voltage Category: OVC II (DC), OVC IV (AC)
• Cabinet Size (W*H*D) [mm]: 420×670×233 (Excluding connectors and brackets)
• Weight [kg]: 35.6
• Warranty: 5 Years/10 Years (The Warranty Period Depends on the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy)
• Type of Cooling: Intelligent air cooling
• Grid Regulation: VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
• Safety EMC/Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
